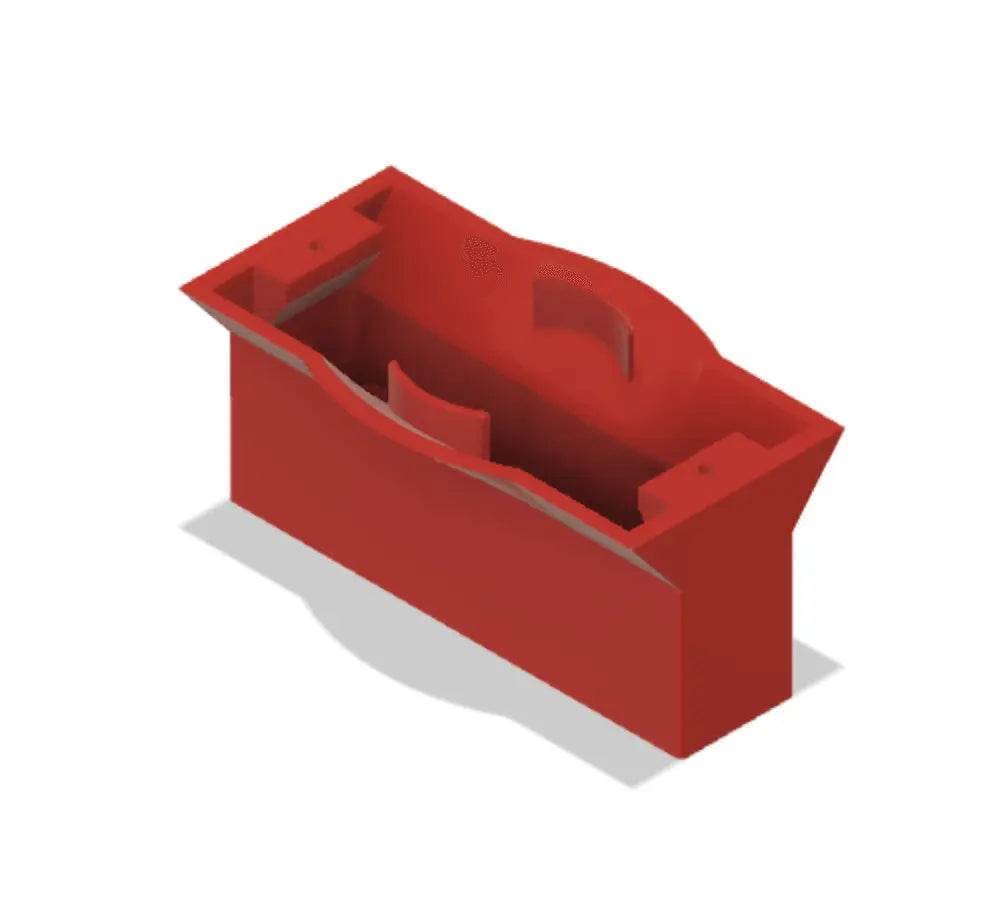

This baseplate is used for the adjustable mount in tight areas. There are different extension lengths from the wall available to allow the small 3/4" wide section to get past trim that may be in the way for the base of the adjustable mount.
3/4” wide x 1-1/2Extension(the 1” inch section is 3/4” wide) with Transition(changes width from 3/4” to 1.8”) - Total 1-7/8”Extension + Swivel Mount at 1.5inches + Doorbell (Typical 1in) = 4.375in. Typical with 1-1/2in Narrow base the doorbell face will be about at 4-3/8in.

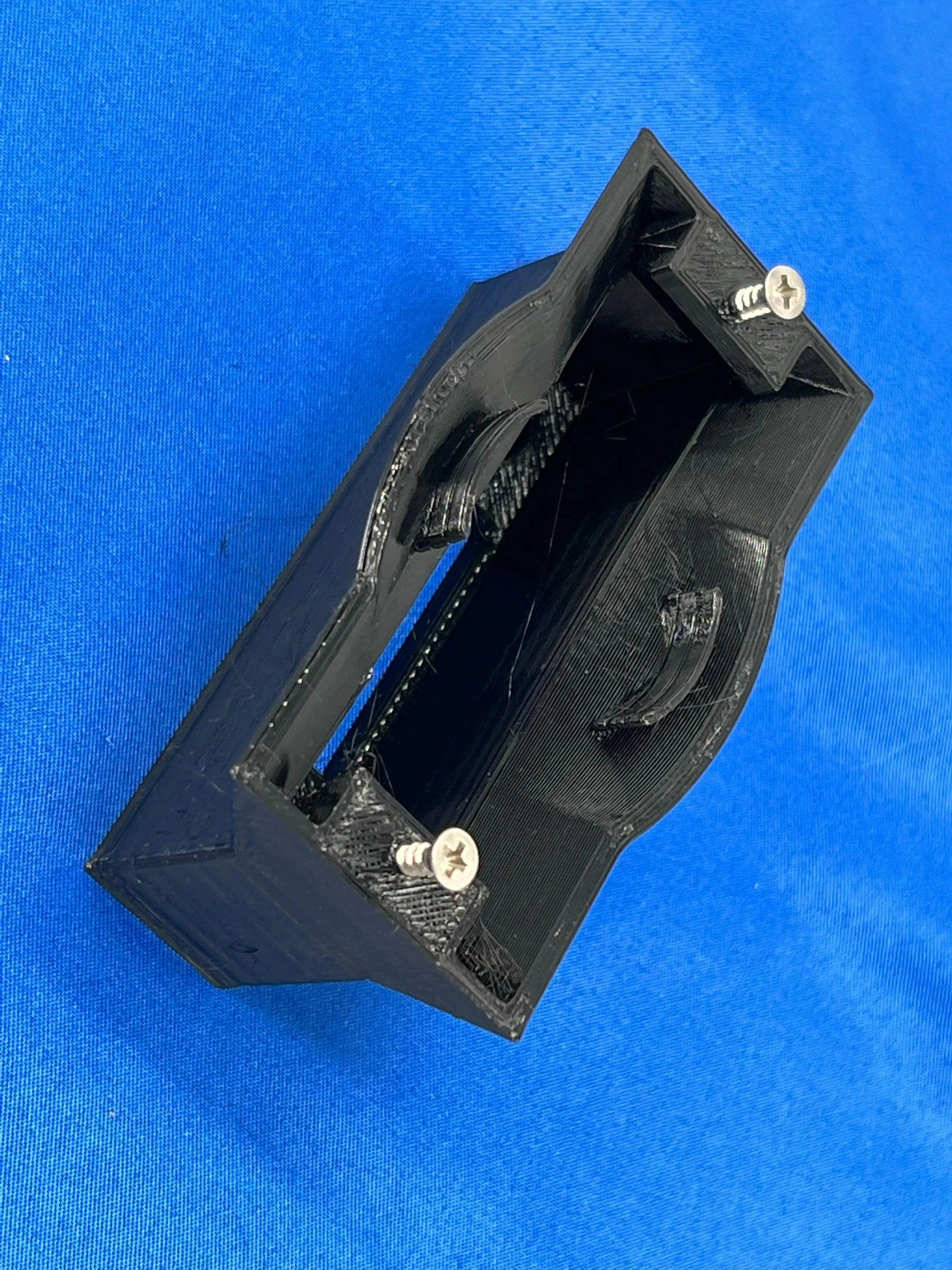

The narrow baseplate is an add-on piece and screws together with the main base. They fit together snuggly.
The baseplate color will be the same color as the main base that is ordered
The holes are in line with the base of swivel mounts at 2-5/8”. Hole spacing can be customized.
